CX600 Log Moulder / Planer Wood Moulding Machines Shape and Plane Beams & Oversized Boards

Informacion basica
Lugar de origen: Provincia de Shandong, China
Nombre de la marca: SH
Certificación: ISO9001
Número de modelo: CX600
Cantidad de orden mínima: 1 set
Precio: US $4,300 - 5,500 / Set
Detalles de empaquetado: Exportar embalaje o carga de contenedores envuelto en película
Tiempo de entrega: dentro de los 15 días
Condiciones de pago: T/t, unión occidental
Capacidad de la fuente: 1000 series por año
Información detallada
Nombre: Log moldeador / cepillador Condición: Nuevo
Función: Vigas de forma y plano y tableros de gran tamaño Grado automático: Semiautomático
máx. Anchura de trabajo: 600 mm Max. Altura de procesamiento: 500 mm
Poder (W): Motor de gasolina de 13 hp Peso: 350kgs
Garantía: 1 año Servicio postventa proporcionado: Soporte técnico de video, soporte en línea

Descripción de producto

Log Moulder / Planer

Expand Your Sawmill Business with the CX600 Log Moulder/Planer

Transform your sawmill operation into a more efficient and profitable woodworking business with the CX600—a advanced log moulder and planer attachment that allows you to produce smoothly planed and intricately moulded timber products directly on your sawmill. Unlock new revenue streams by creating premium columns, interlocking beams, and custom moulded lumber with precision and ease.

Key Benefits at a Glance:

  • All-in-One Processing – Plane and mould wood right after squaring, without repositioning the timber. Save time, reduce handling, and minimize waste.

  • Increase Profitability – Produce high-value moulded products such as decorative columns, beams, and patterned lumber for custom builders, craftsmen, and woodworkers.

  • Seamless Integration – Mounts directly onto your SW26 sawmill rails, turning your existing equipment into a versatile multi-purpose workstation.

Technical Specifications:

  • Compatible with: SW26 Sawmill

  • Installation: Rail-mounted

  • Applications: Planing, moulding, pattern cutting

  • Ideal For: Beams, columns, custom moulded timber

Model

CX600

Max. Processing width

600MM

Max. Processing height

500MM

Processing length

4000mm

Power

13HP petrol engine

4 units blade

Arc knife, upper grooving knife, lower grooving knife, straight knife

Rail length

5000MM

Weight

350KG



Detailed Images

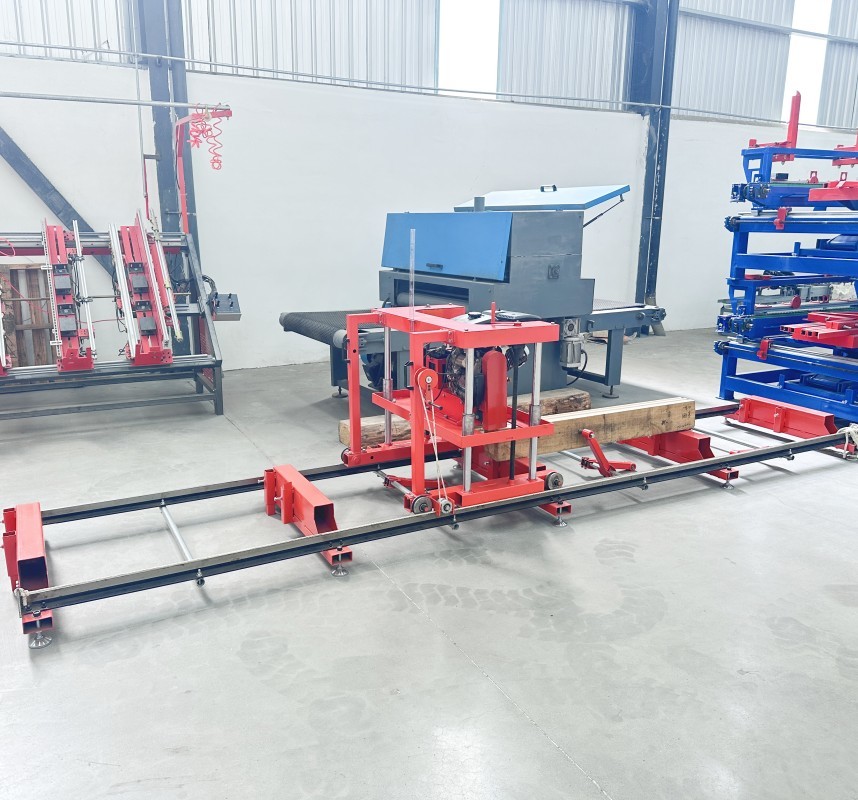

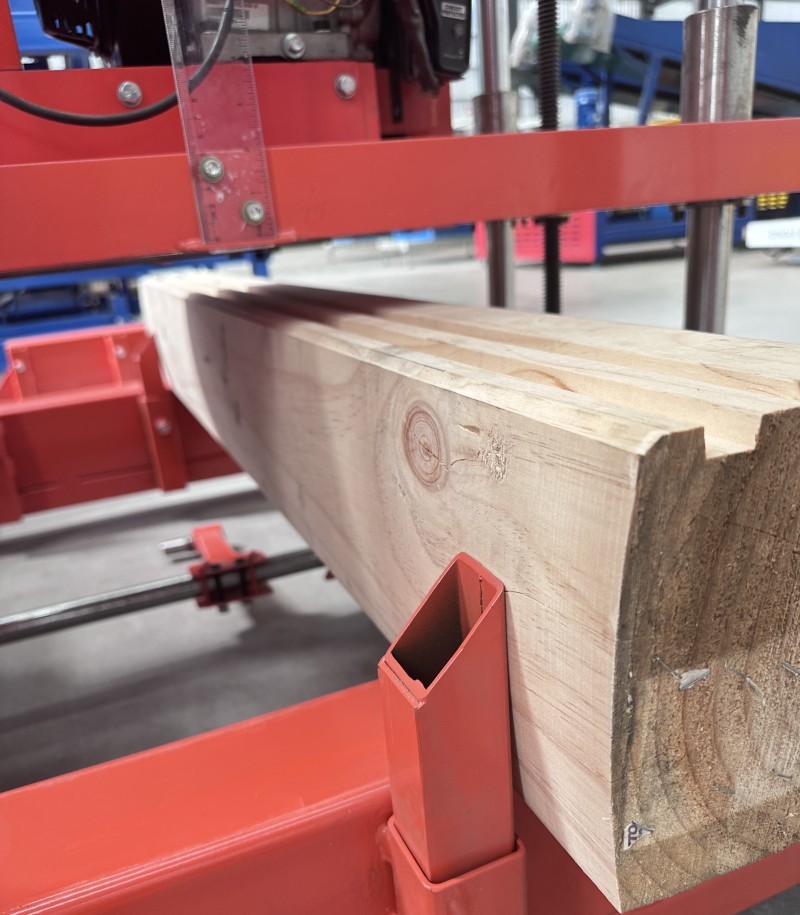

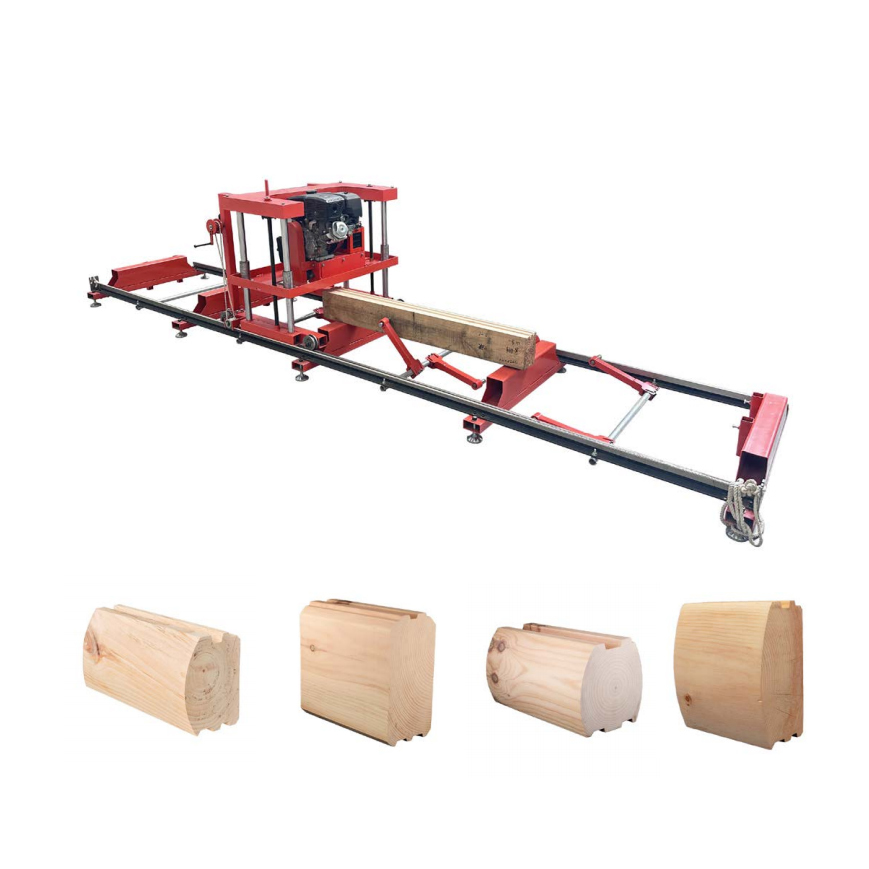

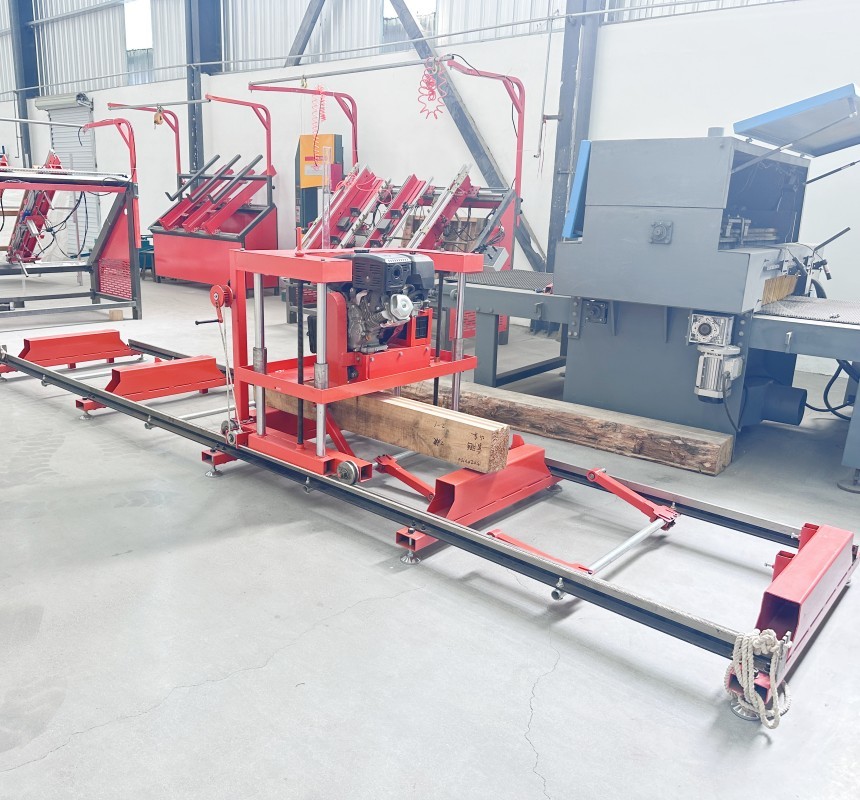

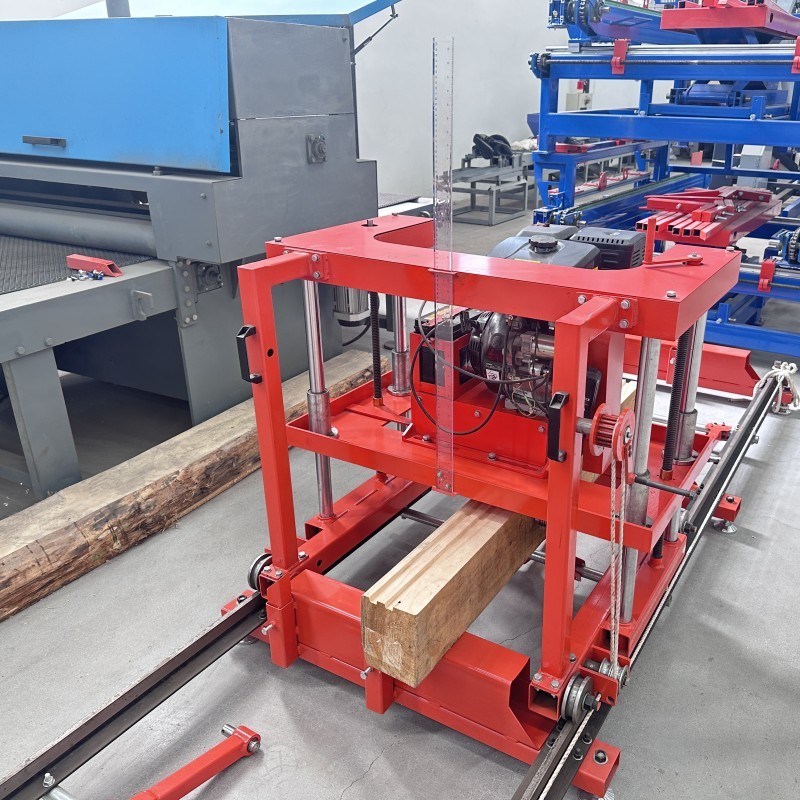

CX600 Log Moulder / Planer Wood Moulding Machines Shape and Plane Beams & Oversized Boards 0CX600 Log Moulder / Planer Wood Moulding Machines Shape and Plane Beams & Oversized Boards 1CX600 Log Moulder / Planer Wood Moulding Machines Shape and Plane Beams & Oversized Boards 2



Features & Advantages:

  • Easy Mounting System
    Quickly attaches to your sawmill log bed—no extra space or separate machine required.

  • Precision Moulding & Planing
    Create smooth finishes and accurate patterns that ensure perfect joins for beams and columns.

  • Time and Labor Savings
    Eliminate the need to move wood to a separate machine. Finish pieces in one continuous workflow.

  • Ideal for Small Operations & Craftsmen
    Perfect for custom woodshops, artisan builders, and sawmill owners looking to expand their product offerings.



Have Questions? We Have Answers.

  • Q: Is the CX600 compatible with other sawmill models?
    A: It is designed specifically for the SW26 sawmill. Please contact us for compatibility with other models.

  • Q: Can I use it for both planing and moulding in the same pass?
    A: Yes. The CX600 allows you to plane rough wood and apply moulded profiles in one step.

  • Q: How difficult is it to install?
    A: It’s designed for easy mounting and can be installed with basic tools and minimal downtime.

Trust in Quality & Support

We back the CX600 Log Moulder with a solid warranty and dedicated customer service to ensure your operation runs smoothly. Join countless woodworkers and sawmill operators who have expanded their capabilities and grown their businesses with our attachments.
