Electric Wood Sawmill Horizontal Resaw Bandsaw Precision Horizontal Sawing Machine

Informacion basica
Lugar de origen: Provincia de Shandong, China
Nombre de la marca: SH
Certificación: ISO9001,CE
Número de modelo: Shjm350, shjm650, shjm800
Cantidad de orden mínima: 1 set
Precio: US $7,500-13,950 / Set
Detalles de empaquetado: cargamento de embalaje o del recipiente del marco del hierro
Tiempo de entrega: dentro de los 15 días
Condiciones de pago: T/t, unión occidental
Capacidad de la fuente: 1000 series por año
Información detallada
Nombre: la precisión vuelve a serrar la sierra de cinta Condición: Nuevo
Tipo: la banda vio Potencia del motor principal: 15kw, 18,5kw, 22kw
Motor de alimentación: 1.1kw, 1.5kw Diámetro de la rueda de sierra: 700 mm
Ancho máximo de la sierra: 800 mm Max. Altura de procesamiento: 220 mm
Velocidad de alimentación: Inversor, velocidad ajustable Garantía:: 1 año
Servicio postventa proporcionado: Ayuda en línea, soporte técnico video, encargando y entrenando
Resaltar:

electric horizontal bandsaw sawmill

,

precision wood resaw machine

,

industrial horizontal sawing equipment


Descripción de producto

Precision Resaw Bandsaw

Unlock Maximum Yield and Precision with an Industrial Precision Resaw Bandsaw

For high-volume woodworking operations, achieving flawless, consistent cuts isn't just a goal—it's a necessity for profitability. An industrial precision resaw bandsaw is engineered to deliver exactly that: unparalleled accuracy and efficiency in every cut. This machine transforms raw lumber into high-value products by maximizing yield and ensuring a superior finish, directly boosting your bottom line through reduced waste and increased output.

Key Benefits and Features at a Glance

  • Unmatched Cutting Accuracy & Consistency

    • Benefit: Produce glue-ready laminates and perfectly dimensioned lumber with exceptional smoothness, minimizing the need for secondary planing or sanding.

    • Features Behind the Benefit: A sophisticated fence system ensures precise workpiece positioning, while computer-balanced wheels and ultra-rigid construction eliminate vibration for dead-straight cuts.

  • Industrial-Grade Construction for Demanding Environments

    • Benefit: Experience rock-solid stability and durability that stands up to the rigors of continuous production, ensuring long-term reliability and minimal downtime.

    • Features Behind the Benefit: Built with heavy-duty components like solid cast-iron wheels, robust trunnions, and a large, stable cast-iron table that forms an unshakable foundation.

Technical Specifications:

Horizontal Resaw Band Saw Mills
Model SH350 SH650 SH800
Saw Wheel Diameter 710 mm 710 mm 710 mm
Maximum Cutting Width 350 mm 650 mm 800 mm
Maximum working Wood Height 200 mm 220 mm 220 mm

Max Sawing Height



100 mm 110 mm 110 mm

Min Sawing Thickness



2 mm 2mm 2mm
Feeding speed Variable Frequency Adjusted Speed
Main Electric Motor Power 15 KW 18.5 KW 18.5KW
Up/down motor 0.37kw 0.37kw 0.37kw
Feeding motor 1.1kw 1.1kw 1.5kw
Machine Weight 1000 KG 1200 KG 1400 KG

Detailed Images

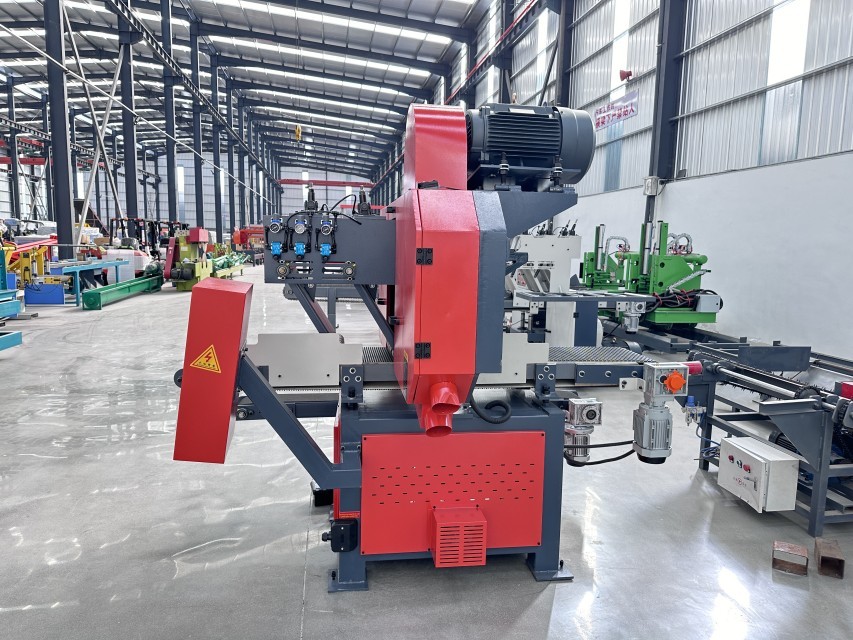

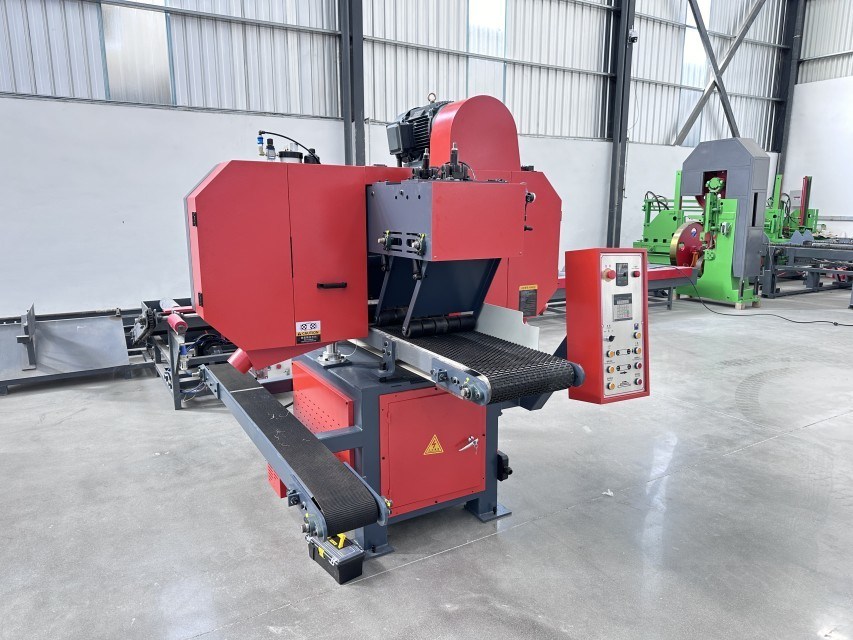

Electric Wood Sawmill Horizontal Resaw Bandsaw Precision Horizontal Sawing Machine 0Electric Wood Sawmill Horizontal Resaw Bandsaw Precision Horizontal Sawing Machine 1

Related Saw Machines

Precision Slice Horizontal Band Sawmill



Digital Control Sawing Thickness Setting
Model
SHJM-400



SHJM-650
SHJM-800
Saw Wheel Diameter



600MM

600MM
700MM
Max Sawing Wood Width

400MM

650MM
800MM
Max Sawing Height

110MM



Min Sawing Thickness



2MM



Feeding Speed



0.1-30 Meters/Minute



Motor Power

15KW




18.5KW




22KW



Feeding Motor


0.75KW


0.75KW

1.5KW

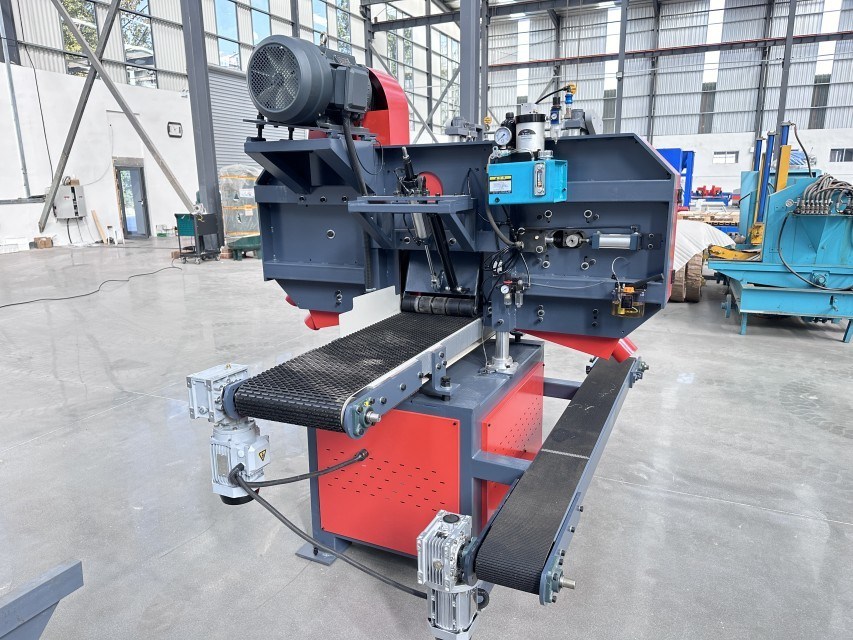

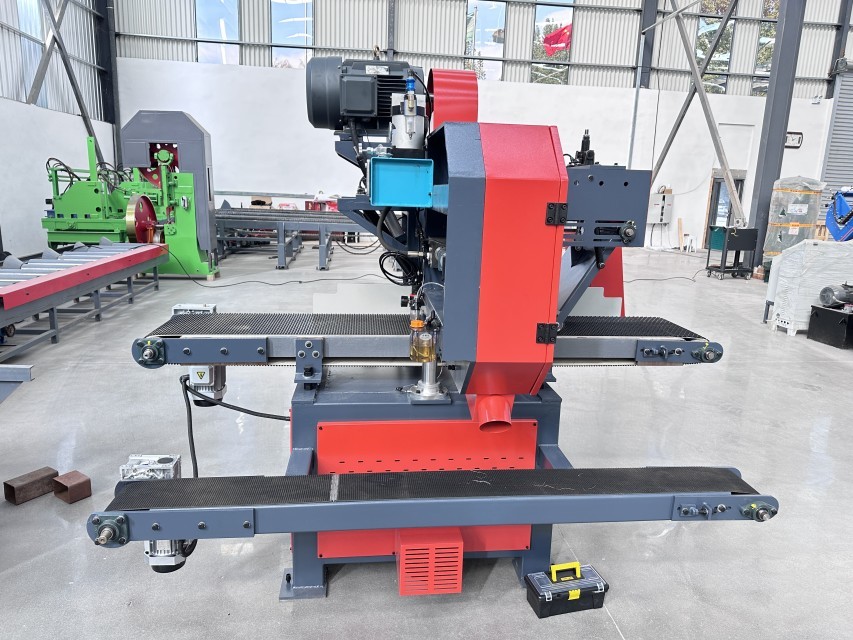

Electric Wood Sawmill Horizontal Resaw Bandsaw Precision Horizontal Sawing Machine 2Electric Wood Sawmill Horizontal Resaw Bandsaw Precision Horizontal Sawing Machine 3



Is a Precision Resaw Bandsaw Right for You?

This machine is purpose-built for industrial production settings, cabinet shops, and specialized mills focused on high-volume, precision work. If your operations involve frequently breaking down thick stock or require the ability to produce thin, consistent slices of wood with a flawless finish, a precision resaw is an indispensable asset.
