| Lugar de origen: | Provincia de Shandong, China |
|---|---|
| Nombre de la marca: | SH |
| Certificación: | ISO9001,CE |
| Número de modelo: | SHJM-400, SHJM-650, SHJM-800, SHJM-1000, etc. |
| Cantidad de orden mínima: | 1 set |
| Precio: | US $5,300-13,950 / Set |
| Detalles de empaquetado: | cargamento de embalaje o del recipiente del marco del hierro |
| Tiempo de entrega: | dentro de los 15 días |
| Condiciones de pago: | T/t, unión occidental |
| Capacidad de la fuente: | 1000 series por año |
| Nombre: | la precisión vuelve a serrar la sierra de cinta | Condición: | Nuevo |
|---|---|---|---|
| Tipo: | Banda de reaw | Potencia del motor principal: | 15kw, 18.5kw, 22kw, 30kw |
| Motor de alimentación: | 0.75kW, 1.5kw | Diámetro de la rueda de sierra: | 600m m, 700m m |
| Ancho máximo de la sierra: | 1000 mm | Max. Altura de procesamiento: | 110 mm |
| Velocidad de alimentación: | Inversor, velocidad ajustable | Garantía:: | 1 año |
| Servicio postventa proporcionado: | Ayuda en línea, soporte técnico video, encargando y entrenando | ||
| Resaltar: | horizontal band sawmill for wood cutting,precision band resaw machine,industrial bottom cutting sawmill |
||
For high-volume woodworking operations, achieving flawless, consistent cuts isn't just a goal—it's a necessity for profitability. An industrial precision resaw bandsaw is engineered to deliver exactly that: unparalleled accuracy and efficiency in every cut. This machine transforms raw lumber into high-value products by maximizing yield and ensuring a superior finish, directly boosting your bottom line through reduced waste and increased output.
Unmatched Cutting Accuracy & Consistency
Benefit: Produce glue-ready laminates and perfectly dimensioned lumber with exceptional smoothness, minimizing the need for secondary planing or sanding.
Features Behind the Benefit: A sophisticated fence system ensures precise workpiece positioning, while computer-balanced wheels and ultra-rigid construction eliminate vibration for dead-straight cuts.
Industrial-Grade Construction for Demanding Environments
Benefit: Experience rock-solid stability and durability that stands up to the rigors of continuous production, ensuring long-term reliability and minimal downtime.
Features Behind the Benefit: Built with heavy-duty components like solid cast-iron wheels, robust trunnions, and a large, stable cast-iron table that forms an unshakable foundation.
| Model | SHJM-400 | SHJM-650 | SHJM-800 | SHJM-1000 |
| Saw wheel diameter | 600MM | 700MM | 700MM | 700MM |
| Max. processing width | 400MM | 650MM | 800MM | 1000MM |
| Max. processing height | 110MM | 110MM | 110MM | 110MM |
| Sawn min.thickness | 2MM | 2MM | 2MM | 2MM |
| Feeding speed | 0.1-30m/min | 0.1-30m/min | 0.1-30m/min | 0.1-30m/min |
| Main motor power | 15KW | 18.5KW | 22KW | 30KW |
| Feeding motor power | 0.75KW | 0.75KW | 1.5KW | 1.5KW |
| Sawn sizes setting | CNC digital | CNC digital | CNC digital | CNC digital |
| Machine weight | 1850kgs | 2550kgs | 2750kgs | 3150kgs |
![]()
![]()
![]()

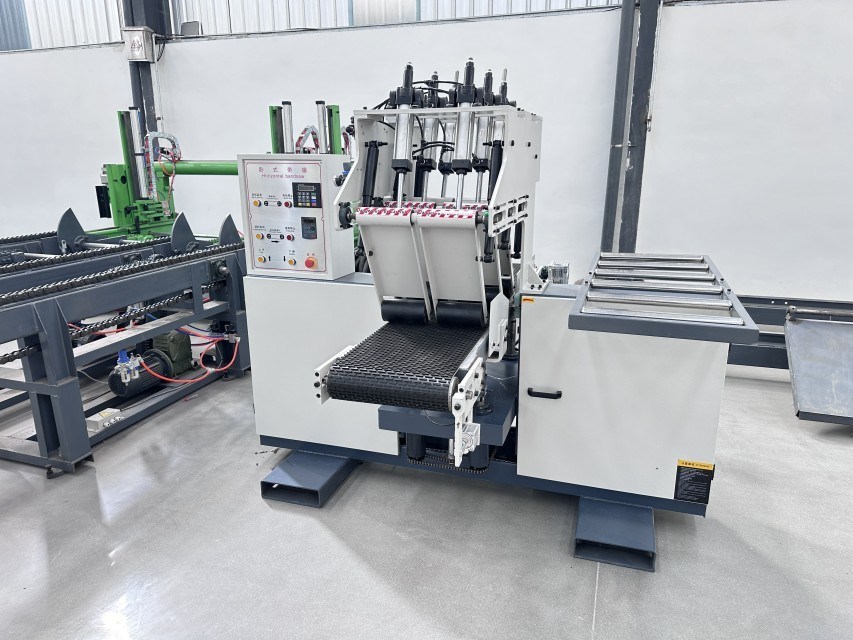

Precision Slice Horizontal Band Sawmill
| Horizontal Resaw Band Saw Mills | |||
| Model | SH350 | SH650 | SH800 |
| Saw Wheel Diameter | 710 mm | 710 mm | 710 mm |
| Maximum Cutting Width | 350 mm | 650 mm | 800 mm |
| Maximum working Wood Height | 200 mm | 220 mm | 220 mm |
|
Max Sawing Height
|
100 mm | 110 mm | 110 mm |
|
Min Sawing Thickness
|
2 mm | 2mm | 2mm |
| Feeding speed | Variable Frequency Adjusted Speed | ||
| Main Electric Motor Power | 15 KW | 18.5 KW | 18.5KW |
| Up/down motor | 0.37kw | 0.37kw | 0.37kw |
| Feeding motor | 1.1kw | 1.1kw | 1.5kw |
| Machine Weight | 1000 KG | 1200 KG | 1400 KG |
Is a Precision Resaw Bandsaw Right for You?
This machine is purpose-built for industrial production settings, cabinet shops, and specialized mills focused on high-volume, precision work. If your operations involve frequently breaking down thick stock or require the ability to produce thin, consistent slices of wood with a flawless finish, a precision resaw is an indispensable asset.
